Basic Information

Supported CPU

Supports Intel Core Ultra Processors (Series 2), LGA1851 Socket

Chipset

INTEL B860

BIOS

256 Mb Flash ROM, UEFI AMI BIOS

Form Factor

ATX Form Factor

12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Audio

ROG SupremeFX 7.1 Surround Sound

High Definition Audio CODEC ALC4080

Supports up to 32-bit/384 kHz playback

Expansion Slots

PCI

Intel Core Ultra Processors(Series 2)

1 x PCIe 5.0 x16 slot (supports x16 mode)

Intel B860 Chipset

1 x PCIe 4.0 x16 slot (supports x4 mode)

M.2 Socket

4 x M.2

Memory

Type

DDR5

Slots

4

Supported Memory

4 x DIMM slots, max. 256GB, DDR5

Support up to 9066MT/s (OC), Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)

Dual channel memory architecture

Supports Intel Extreme Memory Profile (XMP) memory module

DIMM Fit

ASUS Enhanced Memory Profile III (AEMP III)

Maximum Memory

Maximum Memory Capacity 256GB

Graphics

Graphics

1 x DisplayPort

1 x HDMI port

1 x Intel Thunderbolt 4 port (USB Type-C) supports DisplayPort and Thunderbolt video outputs

Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.

Supports max. 8K@60Hz with DSC as specified in DisplayPort 1.4.

Supports 8K@60Hz with DSC as specified in HDMI 2.1.

In ThunderboltTM 4 mode, supports up to 8K@60Hz x1 with DSC or 4K@60Hz x 2, with maximum total bandwidth up to 23.8Gbps or 16Gbps/16Gbps, for resolution support please check DisplayPort 2.1 specs.

VGA resolution support depends on the processors' or graphic cards' resolution.

Connector & Ports

HDMI

1x HDMI 2.1

Display Port (s)

1x DisplayPort 1.4a

USB (s)

Rear USB (Total 9 ports)

1 x Thunderbolt 4 port (1 x USB Type-C)

1 x USB 20Gbps port (1 x USB Type-C)

1 x USB 10Gbps port (1 x Type-A)

6 x USB 5Gbps ports (6 x Type-A)

Front USB (Total 6 ports)

1 x USB 10Gbps (1 x USB Type-C)

1 x USB 5Gbps header supports 2 additional USB 5Gbps ports

2 x USB 2.0 headers support 3 additional USB 2.0 ports

* USB Type-C power delivery output: max. 5V/3A

LAN Port (s)

1 x Intel 2.5Gb Ethernet

ASUS LANGuard

Wireless Communication module

Wi-Fi 7

2x2 Wi-Fi 7 (802.11be)

Supports 2.4/5/6GHz frequency band

Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.

Bluetooth® v5.4

Wi-Fi features may vary depending on the operating system

For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.

Supported Storage

Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports

Intel Core Ultra Processors(Series 2)

M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)

Intel B860 Chipset

M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)

M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

4 x SATA 6Gb/s ports

M.2_4 slot shares bandwidth with PCIEX16(G4). When M.2_4 is occupied with SSD device, PCIEX16(G4) will be disabled.

Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.

RAID

SATA RAID 0/1/5/10

Audio

2 x Audio jacks

Internal I/O Ports

Fan and Cooling Related

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

1 x 4-pin AIO Pump header

4 x 4-pin Chassis Fan headers

Power Related

1 x 24-pin Main Power connector

2 x 8-pin +12V CPU Power connectors

Storage Related

4 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 10Gbps connector (supports USB Type-C®)

1 x USB 5Gbps header supports 2 additional USB 5Gbps ports

2 x USB 2.0 headers support 3 additional USB 2.0 ports

Miscellaneous

3 x Addressable Gen2 headers

1 x Chassis Intrusion header

1 x Front Panel Audio header (F_AUDIO)

1 x Start button

1 x 10-1 pin Front System Panel header

1 x Thermal Sensor header

1 x Thunderbolt™ (USB4®) header

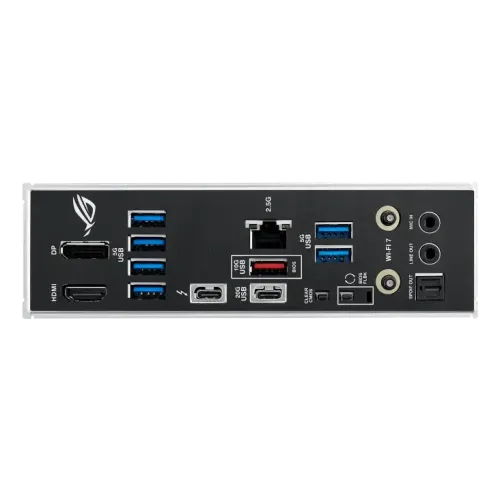

Back Panel I/O Ports:

1 x Thunderbolt™ 4 (1 x USB Type-C®)

1 x USB 20Gbps port (1 x USB Type-C®)

1 x USB 10Gbps port (1 x Type-A)

6 x USB 5Gbps ports (6 x Type-A)

1 x DisplayPort

1 x HDMI™ port

1 x Wi-Fi module

1 x Intel® 2.5Gb Ethernet port

2 x audio jacks

1 x Optical S/PDIF out port

1 x BIOS FlashBack™ button

1 x Clear CMOS button

Others

Special Features

Extreme Engine Digi+

- 5K Black metallic capacitors

ASUS Q-Design

- M.2 Q-Latch

- M.2 Q-Release

- M.2 Q-Slide

- PCIe Slot Q-Release Slim (with PCIe SafeSlot)

- Q-Antenna

- Q-Dashboard- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

- Q-Slot

ASUS Thermal Solution

- M.2 heatsink backplate

- M.2 heatsink

- VRM heatsink design

ASUS EZ DIY

- BIOS FlashBack™ button

- BIOS FlashBack™ LED

- Clear CMOS button

- CPU Socket lever protector

- ProCool

- Pre-mounted I/O shield

- SafeSlot

- SafeDIMM

Aura Sync

- Addressable Gen2 headers

Bundled Software

ROG Exclusive Software

- ROG CPU-Z

- Dolby Atmos

ASUS Exclusive Software

Armoury Crate

- Aura Creator

- Aura Sync

- Fan Xpert 4

- GameFirst

- Power Saving

ASUS Driver Hub

AIDA64 Extreme (60 days free trial)

HWiNFO

ASUS GlideX

TurboV Core

Adobe Creative Cloud (Days Free Trial)

Norton 360 for Gamers (60 Days Free Trial)

WinRAR (40 Days Free Trial)

UEFI BIOS

NPU Boost

ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUS EZ Flash

- ASUS UEFI BIOS EZ Mode

- ASUS MyHotkey

Warranty Information

Manufacturing Warranty

3 Year warranty
